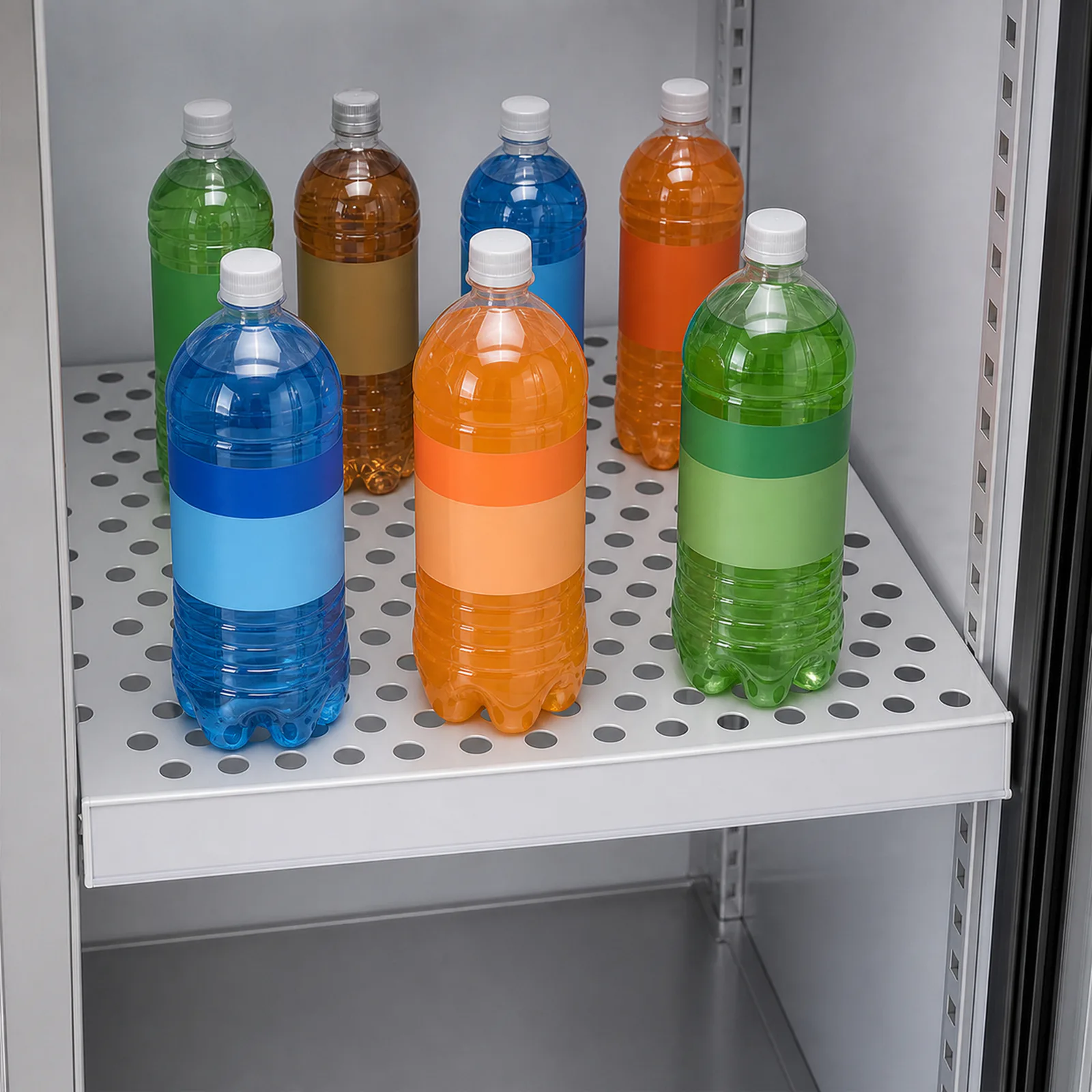

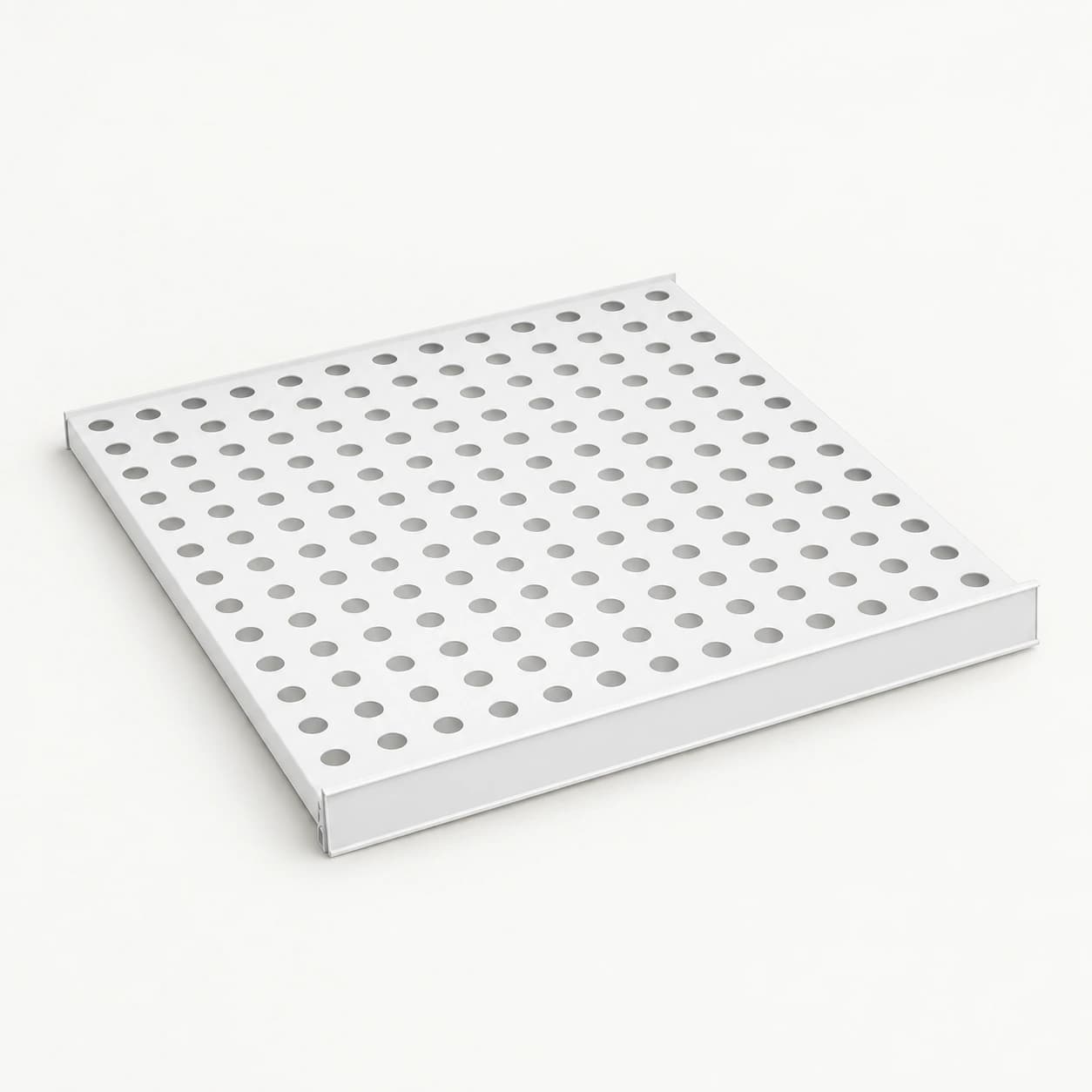

MK-PT-SH-CU-FB Perforated Flat Refrigerator Shelf for Bottles with Uneven Bases — product view

01 / 01

MARKOOL model · MK-PT-SH-CU-FB

Perforated Refrigerator Shelf for Bottles

For a perforated shelf, provide the actual package bases, load arrangement and support points.

Component format: Flat perforated metal shelf
Interface to match: Cabinet supports and package-base contact area.

Category: Parts and Components
Configuration: Made to project dimensions; options confirmed in your quotation
Sales response: Within one business day

Your next decision

Supply bottle-base photos and actual samples.

Compare with Solid Metal Shelves for Open Front Coolers →Check replacement fit →See available information ↓

Project configuration

Configure your component.

Made to the agreed component drawing. Dimensions, interfaces and material selections are set for the project; working loads and performance limits are confirmed for the selected assembly.

Check the deck against the package base

For a perforated shelf, provide the actual package bases, load arrangement and support points. Request a deck layout that can be reviewed within the host cabinet configuration.

What to review on a sample

Place packs across proposed holes, edges and joins. Review rocking and retrieval, then agree the hole pattern, material thickness and loaded acceptance criteria.

Plan the quality review →

MARKOOL model: MK-PT-SH-CU-FB
Project choices: Custom perforated deck for packs needing a flat bearing surface.
Component format: Flat perforated metal shelf

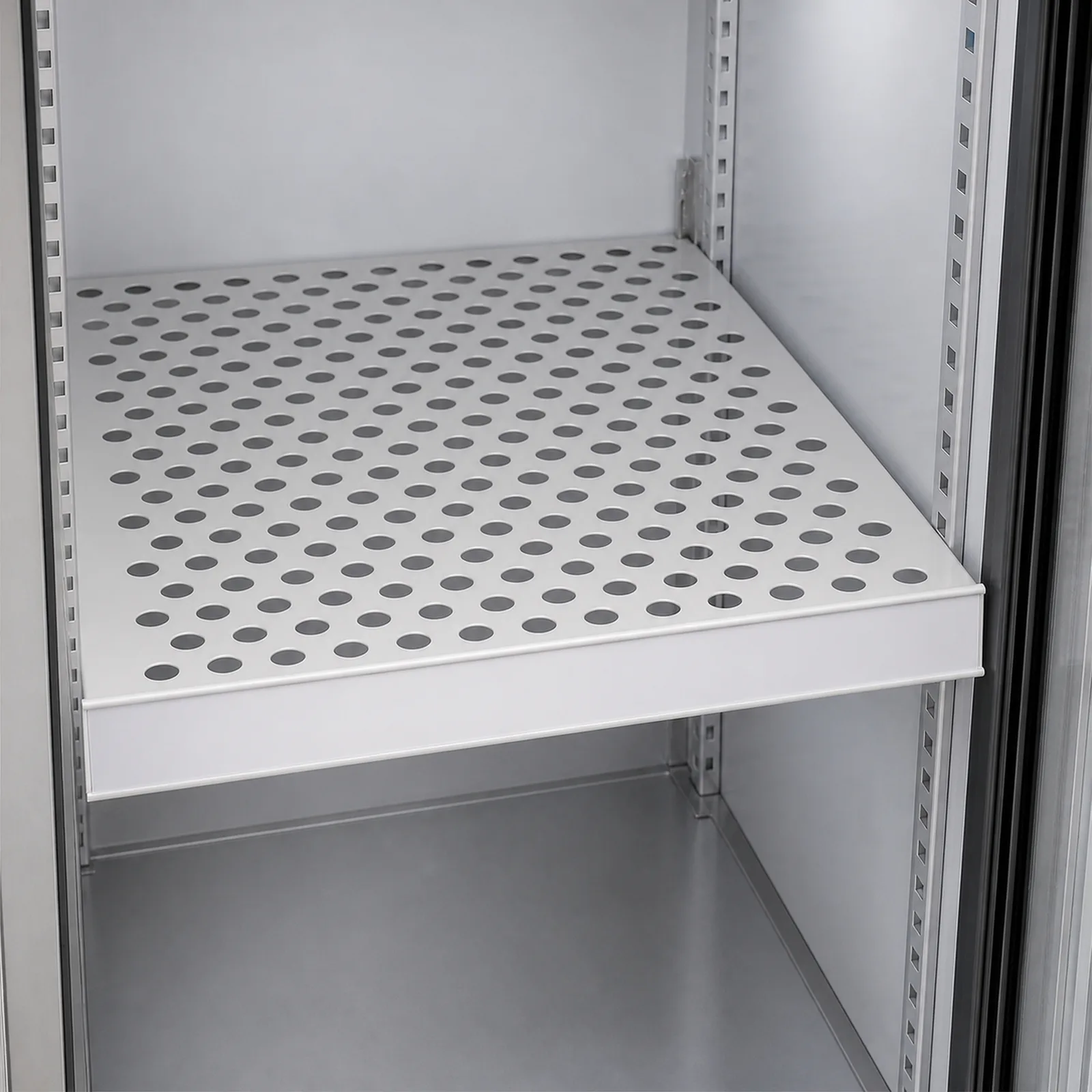

Layout reference: Flat deck with distributed perforations.
Fit and mounting: Cabinet supports and package-base contact area.
Supply definition: Shelf component; confirm brackets or clips separately.
Dimensions and acceptance: Width/depth, sheet gauge, hole diameter/pitch, edge folds, support span and loaded acceptance criteria. Numerical values are confirmed on the agreed drawing and inspection plan.

Component decision

Match the task and the interface.

Compare a nearby catalogue option, then use the checks below to define your request. Each record keeps its own drawing, configuration and supply scope.

01 / Check the interface

Three details to confirm

Supply bottle-base photos and actual samples.
Mark supports and required size.
Confirm hole pattern, thickness and loaded stability criteria.

02 / Compare an alternative

MK-PT-SH-CU-FB · Ref. 134 or MK-PT-SH-MR-OC · Ref. 124?

Compare perforated and continuous decks using the actual bottle base and host supports. Hole pattern and package stability need review; perforation alone does not establish improved airflow.

MK-PT-SH-CU-FB · Ref. 134: Request the record-specific dimension drawing
MK-PT-SH-MR-OC · Ref. 124: Request the record-specific dimension drawing

Reference component dimensions do not establish host compatibility. Match mounting, supports and the agreed assembly drawing.

Review MK-PT-SH-MR-OC · Ref. 124 →

Keep catalogue reference 134 attached to the request, especially when model labels are shared.

Request MK-PT-SH-CU-FB ↗

Plan the first order

Define the part before the price.

Quantity, dimensions, materials, mounting hardware and any tooling determine the component quotation. The picture identifies the format; the agreed drawing and item list define the supplied part.

Ask the quote to separate: product and included fittings; sample or tooling; branding; inspection/documents; packing/parts; freight and named delivery place.

Full terms, payment and lead-time conditions →

Information for this model

See what you can use now.

Model buying briefDownload now · TXT

Save this record’s published values, comparison notes, supply questions and product-view links in one editable file.

Download MK-PT-SH-CU-FB · Ref. 134 ↓

RFQ checklistDownload now

Fill in your requirements, save a copy and share it with your RFQ.

Download checklist ↓

Model datasheet and dimension drawingAvailability on request

A public revision is not listed here. Specify the host opening and mounting interface so the applicable file or missing details can be identified.

Request this model's technical file →

Installation and service instructionsAvailability on request

Identify the exact model, destination and purpose. The response confirms the applicable revision or what still needs to be prepared.

Request applicable instructions →

Selection boundary

Confirm fit before approval.

Match perforation pattern, shelf dimensions, supports and pack stability to the cabinet.

01Host cabinet model and opening or support dimensions

02Material, profile and mounting geometry

03Quantity and replacement tolerance

04Packing, handling and destination requirements

Configuration and supply

Know what you are asking us to quote.

01 / PRODUCT SCOPE

The part and its fittings

Shelf component; confirm brackets or clips separately.

The quotation itemizes the supplied configuration and included accessories.

02 / OPTIONS TO DISCUSS

Finish and interface choices

Specify finish and compatible shelf-edge labeling separately.

Selected options are confirmed for this model before sample approval.

Discuss these options →

03 / INPUTS FOR YOUR QUOTE

Help us match the host

Supply bottle-base photos and actual samples.
Mark supports and required size.
Confirm hole pattern, thickness and loaded stability criteria.

Request this configuration →

What happens next: the first response identifies the proposed configuration, the information needed to price it and the applicable files available for review. Sales response: within one business day.

Before you order

How do I check bottles with uneven bases?

Review contact, rocking and seating near holes with the intended samples. Agree the loaded arrangement and supports; the shelf description is not a stability-test result.

What needs to be confirmed before ordering?

Made to the agreed component drawing. Dimensions, interfaces and material selections are set for the project; working loads and performance limits are confirmed for the selected assembly.

What can be customized?

Custom perforated deck for packs needing a flat bearing surface. Changes affecting structure, performance or electrical interfaces require a separate technical review and written approval.

What determines the quotation?

The selected configuration, quantity, artwork, electrical or component interfaces, packing and delivery scope determine the offer. Send your package or fit dimensions, destination and quantity. Sample and pilot terms depend on the platform; request a project-specific quotation rather than assuming a fixed online price.

Procurement confirmation

Eight inputs prevent avoidable rework.

Send the information that defines product fit, destination setup, selected options and delivery scope for your quotation.

01Quantity and rollout estimate
02Stored product or package dimensions
03Destination country or market
04Host product and installation dimensions
05Material or fit requirement
06Colour, artwork or branding input
07Delivery region and access constraints
08Required documents or customization
