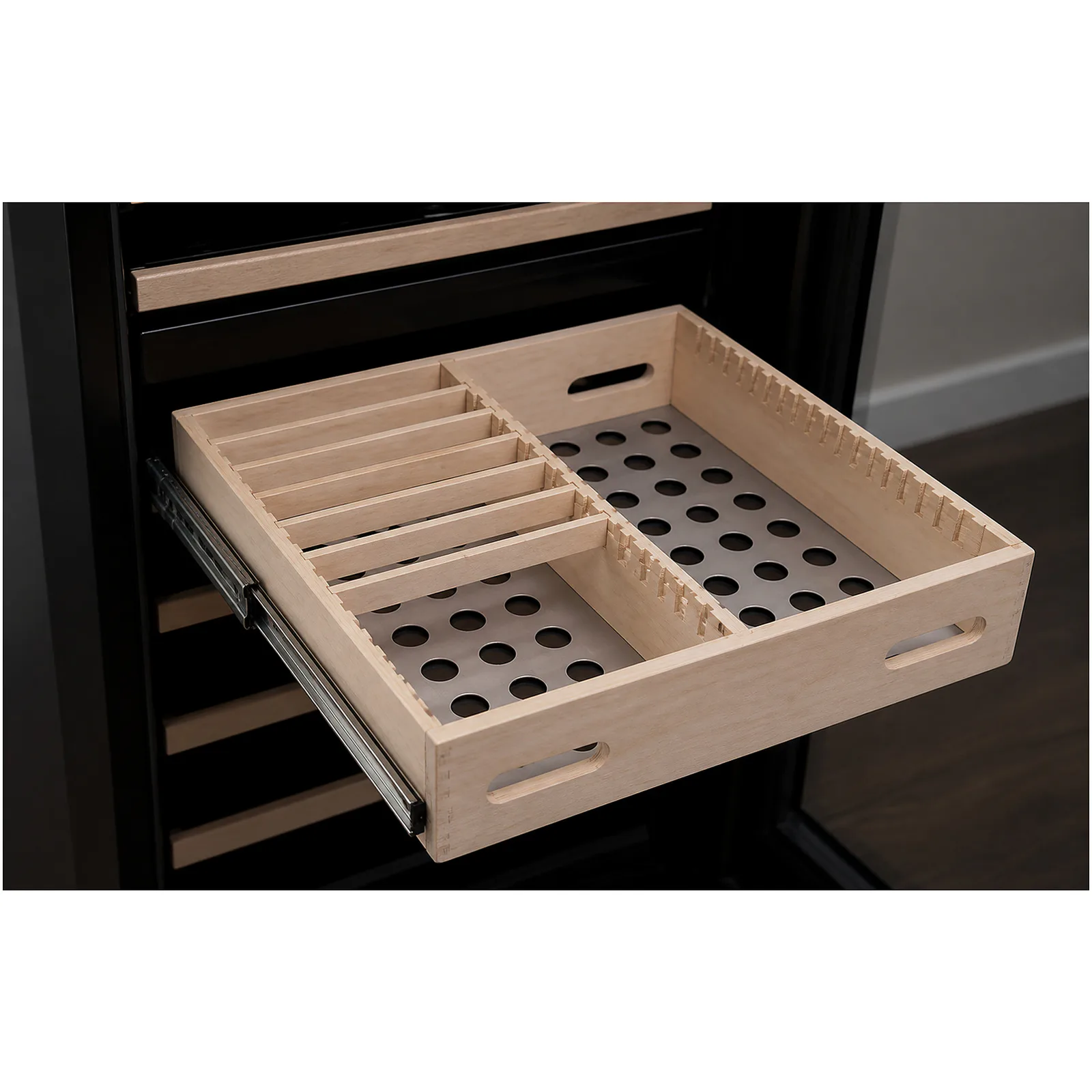

MK-PT-SH-WD-SL Sliding Wooden Tray for Wine and Beverage Coolers — product view

01 / 01

MARKOOL model · MK-PT-SH-WD-SL

Sliding Wooden Tray for Wine and Drinks Coolers

For a sliding wooden display tray, specify the desired access position, bottle layout and clear door opening.

Component format: Sliding wooden display tray
Interface to match: Side guides, travel path, loaded door clearance and stops.

Category: Parts and Components
Configuration: Made to project dimensions; options confirmed in your quotation
Sales response: Within one business day

Your next decision

Measure guide spacing and mounting points.

Compare with Wooden Wine Cooler Shelf with Metal Rails →Check replacement fit →See available information ↓

Project configuration

Configure your component.

Made to the agreed component drawing. Dimensions, interfaces and material selections are set for the project; working loads and performance limits are confirmed for the selected assembly.

Define tray access before selecting hardware

For a sliding wooden display tray, specify the desired access position, bottle layout and clear door opening. Treat guides, stops and mounting parts as items to confirm in the offer.

What to review on a sample

Review bottle visibility and clearance in the closed and requested access positions. Agree loaded travel and retention on the proposed hardware before sample approval.

Plan the quality review →

MARKOOL model: MK-PT-SH-WD-SL
Project choices: Customize tray dimensions, compartment layout and slat spacing around the packs being displayed. Engraving or laser marking can be specified for the wooden face; agree the sliding hardware as part of the assembly.
Component format: Sliding wooden display tray

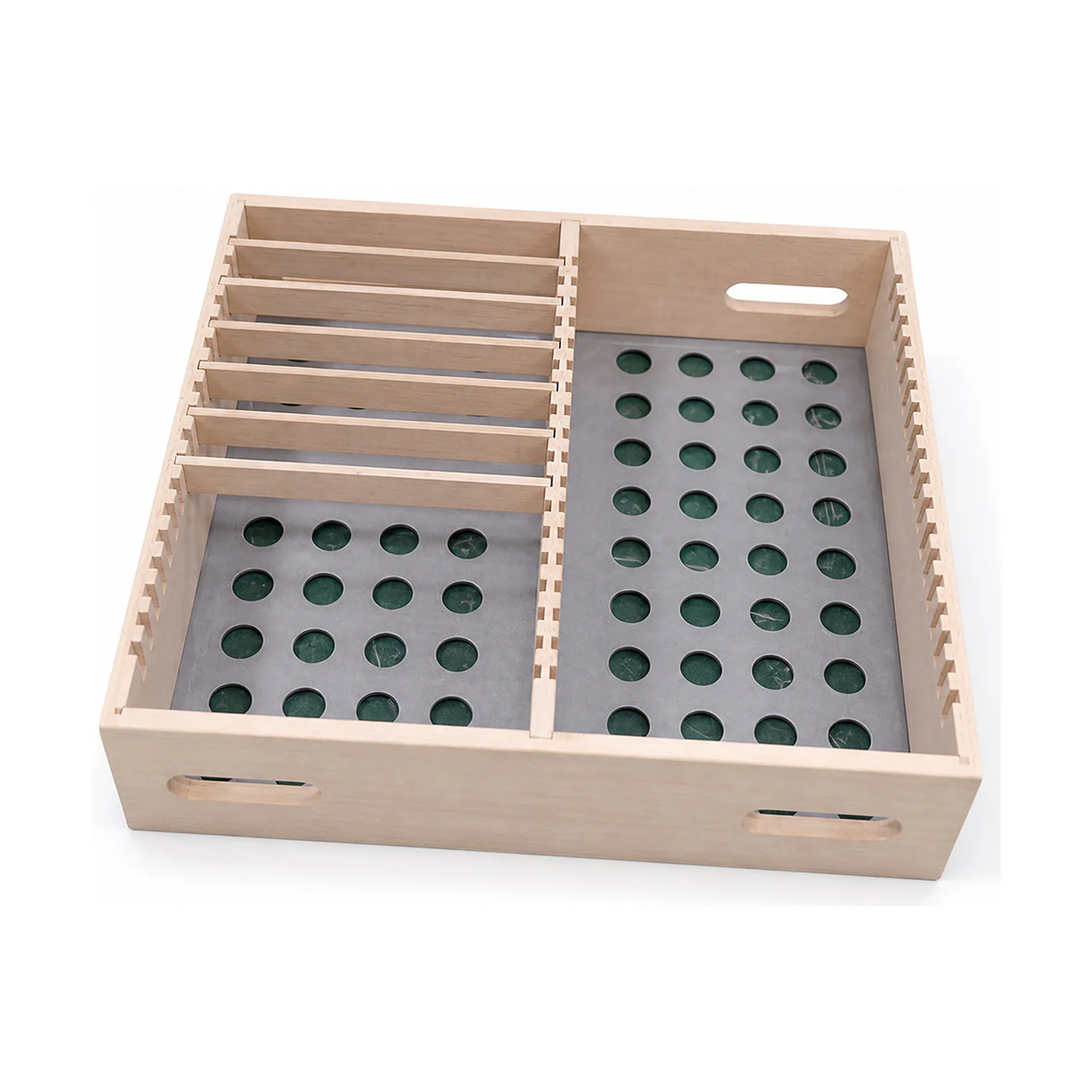

Layout reference: Low-sided tray with separated display areas; pictured base patterns differ by compartment.
Fit and mounting: Side guides, travel path, loaded door clearance and stops.
Supply definition: Tray plus the specifically agreed sliding hardware; the cabinet is a separate quotation item.
Dimensions and acceptance: Tray dimensions, compartment layout, base pattern, rail type/span/travel, stops, wood finish and loaded acceptance criteria. Numerical values are confirmed on the agreed drawing and inspection plan.

Component decision

Match the task and the interface.

Compare a nearby catalogue option, then use the checks below to define your request. Each record keeps its own drawing, configuration and supply scope.

01 / Check the interface

Three details to confirm

Measure guide spacing and mounting points.
Show fully open door and tray extension.
Confirm stops, travel and loaded bottle arrangement.

02 / Compare an alternative

MK-PT-SH-WD-SL · Ref. 123 or MK-PT-SH-WD-WC · Ref. 121?

This record specifies a sliding tray; the rail-equipped wooden shelf leaves motion to confirmation. Compare guides, travel and open-door clearance rather than equating all rail-equipped shelves.

MK-PT-SH-WD-SL · Ref. 123: Request the record-specific dimension drawing
MK-PT-SH-WD-WC · Ref. 121: Request the record-specific dimension drawing

Reference component dimensions do not establish host compatibility. Match mounting, supports and the agreed assembly drawing.

Review MK-PT-SH-WD-WC · Ref. 121 →

Keep catalogue reference 123 attached to the request, especially when model labels are shared.

Request MK-PT-SH-WD-SL ↗

Plan the first order

Define the part before the price.

Quantity, dimensions, materials, mounting hardware and any tooling determine the component quotation. The picture identifies the format; the agreed drawing and item list define the supplied part.

Ask the quote to separate: product and included fittings; sample or tooling; branding; inspection/documents; packing/parts; freight and named delivery place.

Full terms, payment and lead-time conditions →

Information for this model

See what you can use now.

Model buying briefDownload now · TXT

Save this record’s published values, comparison notes, supply questions and product-view links in one editable file.

Download MK-PT-SH-WD-SL · Ref. 123 ↓

RFQ checklistDownload now

Fill in your requirements, save a copy and share it with your RFQ.

Download checklist ↓

Model datasheet and dimension drawingAvailability on request

A public revision is not listed here. Specify the host opening and mounting interface so the applicable file or missing details can be identified.

Request this model's technical file →

Installation and service instructionsAvailability on request

Identify the exact model, destination and purpose. The response confirms the applicable revision or what still needs to be prepared.

Request applicable instructions →

Selection boundary

Confirm fit before approval.

Confirm tray depth, side guides, travel distance and door clearance at full extension.

01Host cabinet model and opening or support dimensions

02Material, profile and mounting geometry

03Quantity and replacement tolerance

04Packing, handling and destination requirements

Configuration and supply

Know what you are asking us to quote.

01 / PRODUCT SCOPE

The part and its fittings

Tray plus the specifically agreed sliding hardware; the cabinet is a separate quotation item.

The quotation itemizes the supplied configuration and included accessories.

02 / OPTIONS TO DISCUSS

Finish and interface choices

Review wood finish and the agreed front-edge treatment.

Selected options are confirmed for this model before sample approval.

Discuss these options →

03 / INPUTS FOR YOUR QUOTE

Help us match the host

Measure guide spacing and mounting points.
Show fully open door and tray extension.
Confirm stops, travel and loaded bottle arrangement.

Request this configuration →

What happens next: the first response identifies the proposed configuration, the information needed to price it and the applicable files available for review. Sales response: within one business day.

Before you order

How do I review a sliding tray's full extension?

Show open door, guide mounting, stops and maximum agreed travel. Include bottle envelope and load so reach and clearance are checked with products on the tray.

What needs to be confirmed before ordering?

Made to the agreed component drawing. Dimensions, interfaces and material selections are set for the project; working loads and performance limits are confirmed for the selected assembly.

What can be customized?

Customize tray dimensions, compartment layout and slat spacing around the packs being displayed. Engraving or laser marking can be specified for the wooden face; agree the sliding hardware as part of the assembly. Changes affecting structure, performance or electrical interfaces require a separate technical review and written approval.

What determines the quotation?

The selected configuration, quantity, artwork, electrical or component interfaces, packing and delivery scope determine the offer. Send your package or fit dimensions, destination and quantity. Sample and pilot terms depend on the platform; request a project-specific quotation rather than assuming a fixed online price.

Procurement confirmation

Eight inputs prevent avoidable rework.

Send the information that defines product fit, destination setup, selected options and delivery scope for your quotation.

01Quantity and rollout estimate
02Stored product or package dimensions
03Destination country or market
04Host product and installation dimensions
05Material or fit requirement
06Colour, artwork or branding input
07Delivery region and access constraints
08Required documents or customization
