Define the product set
List each can, bottle or carton with width, depth, height and expected mix. Note whether products stand upright, lie on their side or use shelf-management accessories. This becomes the input for a pack-out drawing.
Make a first facings estimate
For a simple straight shelf, divide usable shelf width by the pack width or diameter and round down to a whole number. Then subtract space for rails, dividers, price strips, door edges and comfortable hand access. This is a planning estimate, not a certified capacity claim.
For example, 300 mm of theoretical shelf width divided by a 66 mm can diameter gives four whole facings before any clearance allowance. Depth positions and shelf count must be checked separately; multiplying a nominal volume by a package size does not establish the final sellable load.
Protect functional clearances
Shelf spacing must allow loading and removal while preserving airflow, door closure and evaporator clearance. A drawing that fills every millimetre may not perform well in daily use.
Match facings to the retail task
Checkout placement may value a small number of high-visibility facings. High-volume convenience retail may prioritise deeper stock and fast replenishment. Define the commercial task before comparing cabinet volume.
Approve a stocked sample
For important rollouts, test the real packages in the sample. Confirm visibility, shelf deflection, door access, price-strip position and the time needed to reload the cabinet.
Keep nominal space and usable loading separate
The simple facings example is a theoretical calculation, not the shelf size or approved loading of a MARKOOL model. Check every layer on the actual drawing and use the same package assortment when comparing two cabinets.
| Layout field | Check on the model | Reason to keep it separate |
|---|---|---|
| Shelf envelope | Clear width, depth and available height | Cabinet outside size is not shelf space |
| Hardware | Rails, dividers and front stops | These can occupy product positions |
| Access | Door opening and hand clearance | A pack must be reachable and removable |
| Air path | Clearance to ducts, evaporator and openings | A tightly filled drawing is not a performance result |
| Loaded sample | Facing, shelf support and replenishment | Actual pack geometry must be reviewed |

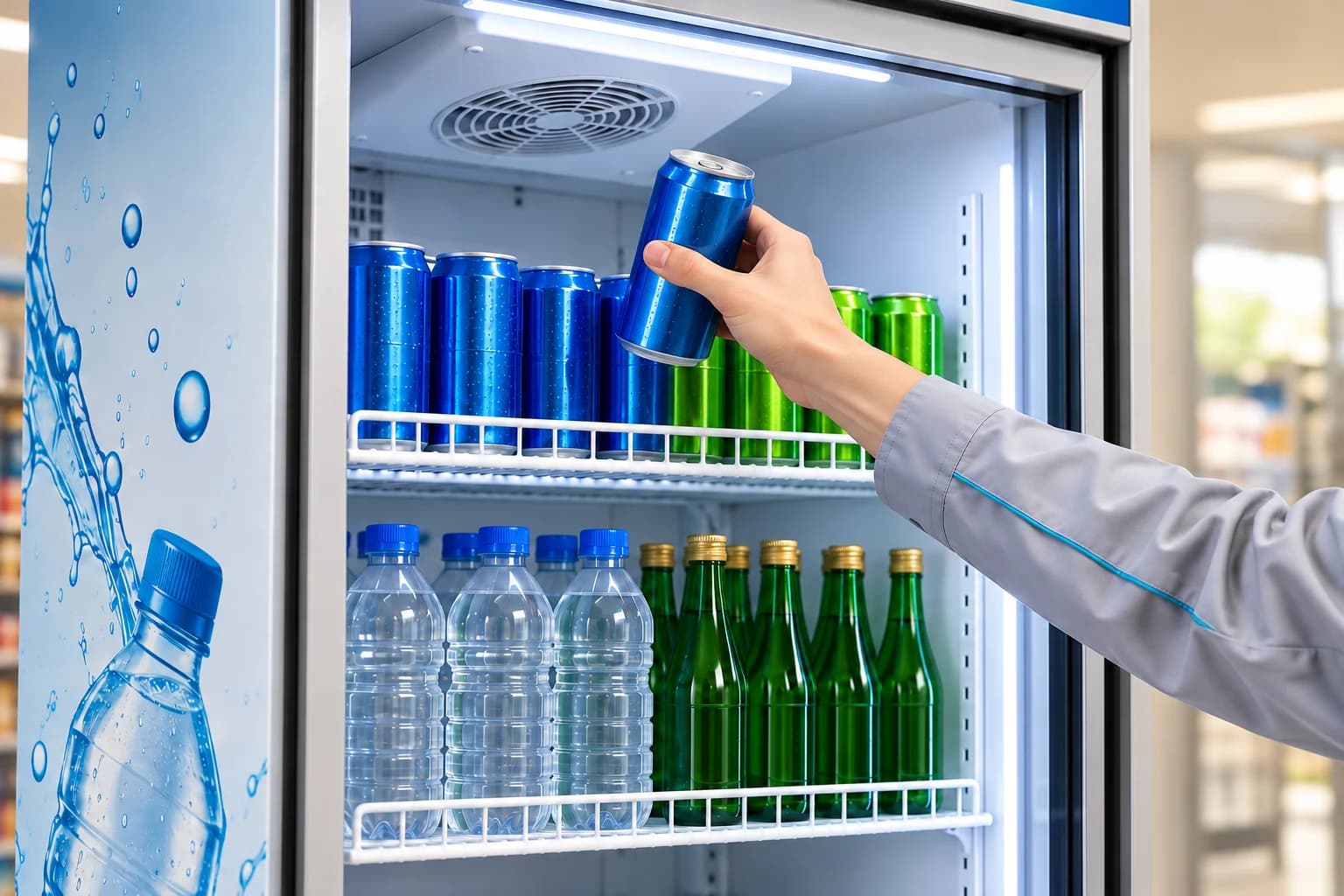

Check the hand path as well as the package count
Place the intended bottles and cans on the proposed shelf layout. Review retrieval, shelf-front access and the space required by the model for airflow. A layout that fits the packs still needs confirmation against the actual shelf dimensions and operating requirements.
- Package width, depth and height
- Shelf positions and customer retrieval
- Model-specific airflow and loading limits
Apply the checklist
Request a model-specific pack-out drawing.
Send your package dimensions, intended model or cabinet format, required facings and destination market. The supplied shelf plan and clearances must be checked for the final configuration.
Request a pack-out drawing ↗
